Coil Taping Machine

  • TBD-15 Height adjustable Table Taping Machine

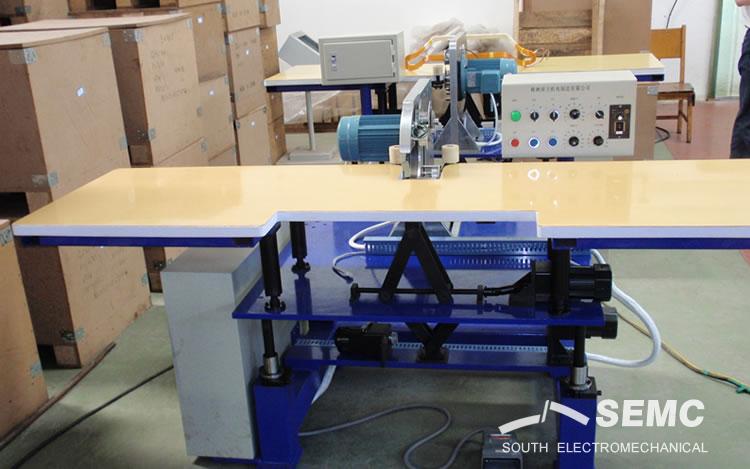

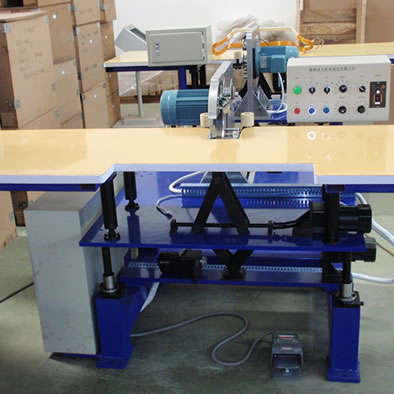

TBD-15 Height adjustable Table Taping Machine

TBD-15 Height adjustable Table Taping Machine

  • Model: TBD-15
  • Coil section: 10x10mm-20x60mm
  • Coil length: 1500mm
  • Coil span: 170~450mm
  • INQUIRY

TBD-15 Height adjustable Table Taping Machine

1. Application:

The machine is suitable for taping of small and medium stator coil. It can tape the straight portion, R portion and part of inclined portion.

2. Main features

Height of taping head  adjustable, to meet the requirement of keeping coil centered

Platform support the coil, effort

Taping speed can be adjusted by frequency converter

Overlap rate can be set manually

Tape tension can be set manually

Suitable to tape with Polyimide film, mica, glass, composite tapes etc.

Foot switch start and stop
