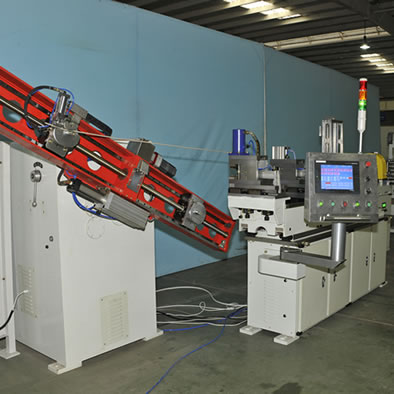

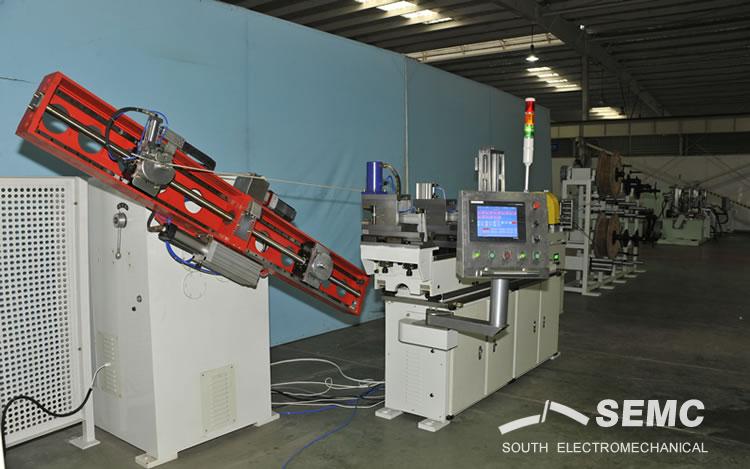

SKRB-20/-30 CNC Winding Machine with on-line inter-turn taping

  • Model: SKRB-20/-30
  • Coil total length(max): 2200/3200mm
  • Rotation Counting capacity: 0~9999
  • Number of shafts in pay-off rack: to customer's requirement
  • INQUIRY

SKRB-20/-30 CNC  Winding Machine with on-line inter-turn taping

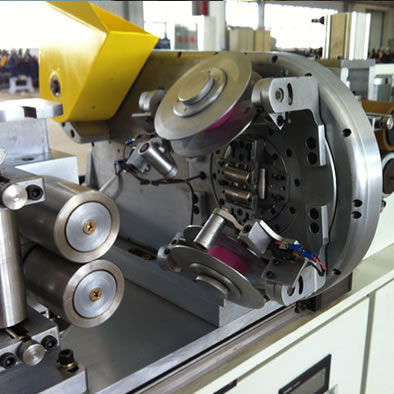

This machine is formed by adding on-line inter-turn taping function to the standard  SKRX-20/-30 winding machine. It is able to apply insulation on the wire bundle while winding to satisfy the inter-turn insulation  requirement. It also can be used for looping of normal coils without inter-turn insulate taping. The taping head speed and wire feed speed keep pace each other to ensure the continuous and consistent taping overlap.

项目item

参数paras.


model: SKRB20-8

单根导线宽度single wire width

2.5~15mm

单根导线厚度single wire depth

1~4mm

SKRB20线圈总长度范围coil total length L1

400~2200 mm

SKRB30线圈总长度范围coil total length L1

400~3200 mm

SKRB20线圈梭心距coil bobbin distance L2

300~2000mm

SKRB30线圈梭心距coil bobbin distance L2

300~3000mm

线圈截面宽度coil section width A

5~25mm

线圈截面coil section height B

10~80mm

引线长度范围 coil lead length range

50-350 mm

梭芯直径coil bobbin diameter

依客户要求定制upon customer request

放线盘数量pay-off reel qty.

按客户要求定制upon customer request

并列根数paralleling wire number

2

距离地面中心高度height above ground center

1250 mm

绕线后尺寸精度size accuracy after winding

±0.2mm(未下模具之前)

在线同步匝间绕包头转速online synchronous interturn winding&taping head rotating speedMax.

220r/min

叠包率overlap rate

0-75%可调节adjustable

主轴转速main shaft rotating speedstepless speed change无级变速)

0~25r/min实际工作转速受匝间绕包速度限制actual working speed subject to interturn winding&taping speed

主轴最大载荷main shaft max. load

1000kg

转数计数容量revolution counting capacity

0~9999

放线架(单线棍)阻尼力矩(双阻尼)pay-off rack (single wire rod) damping torque (double damping)

5~100N.m
